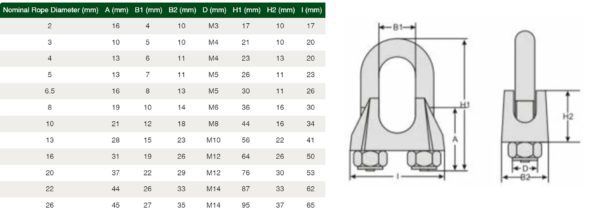

Stainless Steel Wire Rope Grips


Stainless Steel Wire Rope Grips or Bulldog Grips

Safely create a load-bearing eye at the end of a wire rope or cable with this handy wire rope grip. Made from 316 stainless steel, it’s designed for use with wire rope.

Thanks to its stainless steel construction, this clamp boasts a high resistance to corrosion, weathering and the abrasive forces of wire. The component is made of a U-bolt and saddle secured by two nuts.

Due to their robust and durable nature, wire rope clamps are commonly applied in industrial lifting processes. You will find them in a wide variety of sizes suited to different rope diameters.

Features and Benefits

• Stainless-steel bulldog grips

Polish Finish Marine Grade 316 Stainless Steel
• To be used with the correct diameter wire rope
• Resistant to corrosion and weathering
• Can withstand abrasive wire forces
• Suitable for industrial lifting applications. Prior To Fitting, The Threads Of Nuts and ‘U’ Bolts Should Be Well Greased

The Spacing Between The Grip Should Be At Least Six Times The Diameter Of Rope

Ensure Bulldog Grips Are Correctly Orientated. The ‘U’ Bolt Should Always Be Placed On The Unloaded End Of The Rope.

Tighten Each Nut Evenly and In Turn To Achieve The Recommended Setting.

Leave Unused For 24 Hours and Check Torque Setting Again. In Some Cases, a 50% Loss Of Torque Has Been Recorded Over This Period. Re-Tighten To Correct Torque

After First Application Of The Load. Check Torque Setting Again and Re-Set If Necessary.

During Service Ensure, Ensure Periodic Checking Of Torque Setting.

Click HERE View our extensive stainless steel products

Weight N/A

, , , , , , , , , , ,
