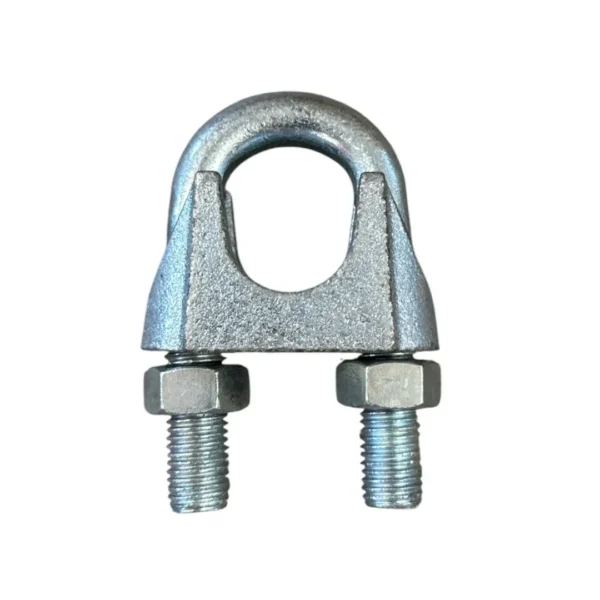

Commercial Wire Rope Grips

Commercial Wire Rope Grips (DIN741)

Wire rope grips are easily attached to wire rope to form eyelets.

Electro galvanised finish with the bridge made from malleable steel and the U Bolt made from mild steel. The ungrooved bridge is marked with the size for easy identification.

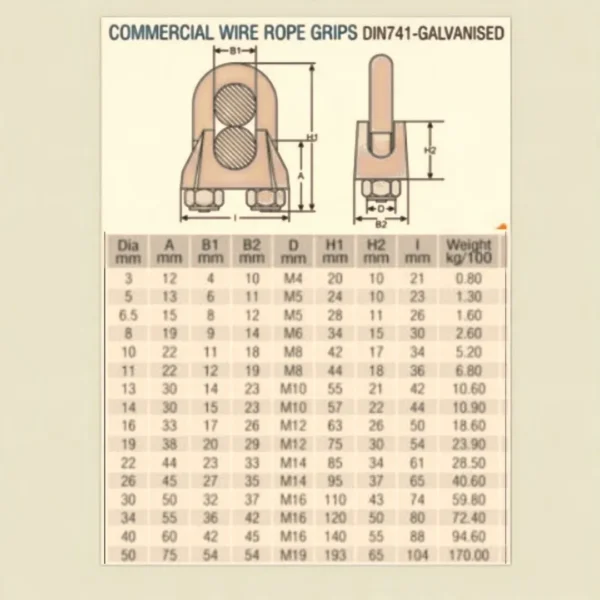

• Select a wire rope clip with the correct dimensions
• Never repair a wire rope clip
• The bridge of the wire rope clip should always be placed on the load bearing part of the rope
• It is required that the products are regularly inspected and that the inspection should take place in accordance with the safety standards given in the country of use

Step 1 – Turn back enough wire rope length so that the
required minimum number of clips can be installed
– The first clip must be placed on the cable’s tail
– Tighten the nuts

Step 2 – The second clip must be placed against the thimble
– Tighten the nuts but not yet completely

Step 3 – The following clips should be placed on the wire rope
between the first and second clip in such a way that
they are separated by at least 1½ times the clip-width
with a maximum of 3 times the clip-width
– Apply light tension on the rope and tighten all nuts
evenly
